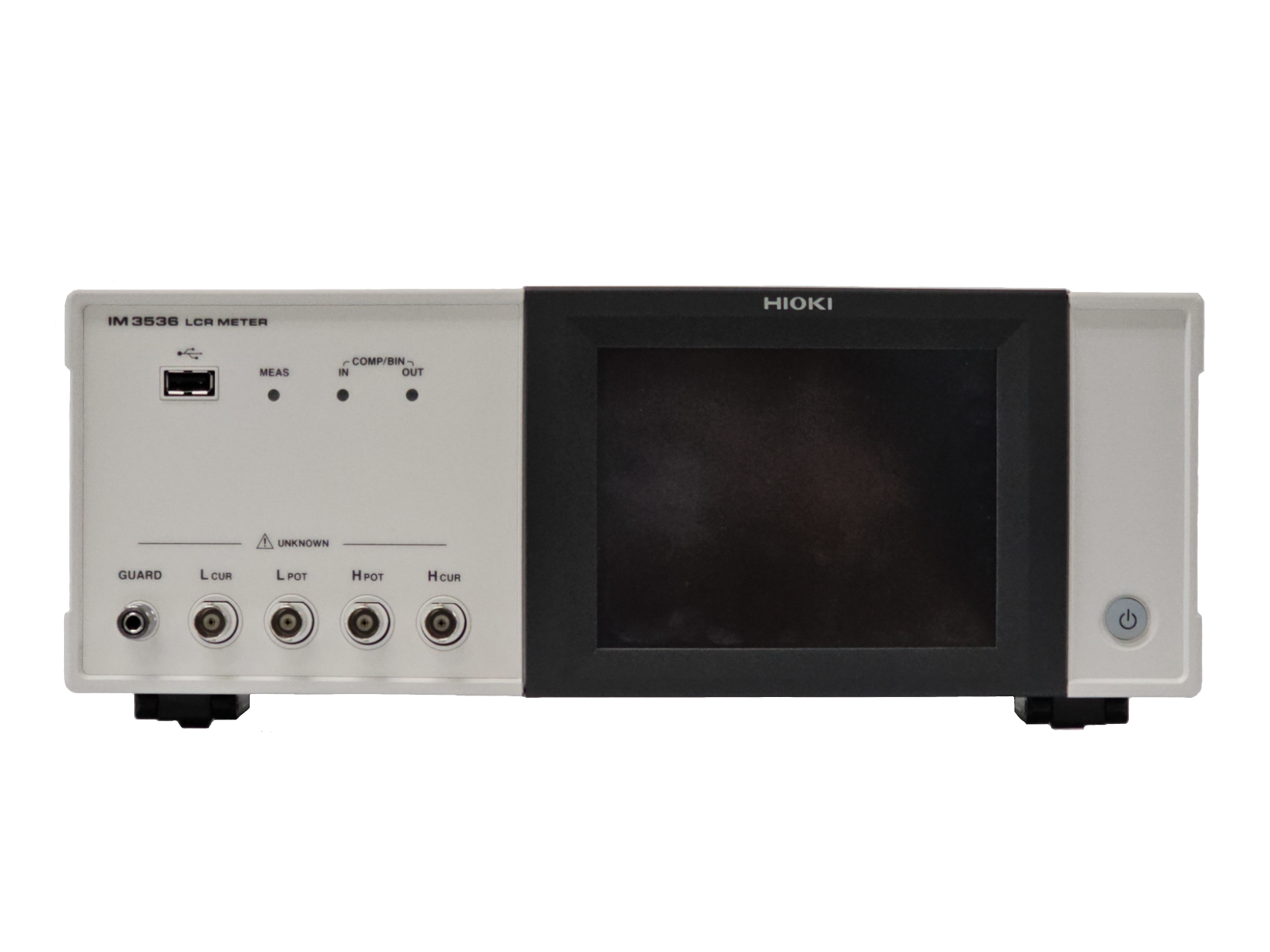

Hioki / LCR Meter / IM3536

4Hz-8MHz high-performance benchtop LCR Meter

Measurement Frequency: DC, 4 Hz to 8 MHz

Basic Accuracy: Impedance (Z): ± 0.05%, Phase (θ): ± 0.03°

Measurement Parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D (loss tangent), Q, Rdc (DC resistance), σ, ε

Measurement Speed: Fast Mode: 1 ms

Test Signal Level:

-Normal Mode: 10 mV to 5 V (1 mV steps), 10 μA to 100 mA (10 μA steps)

-Low Impedance High Accuracy Mode: 5 mV to 1 V (up to 100 mA)

Guaranteed Accuracy Range: 1 mΩ to 200 MΩ

Display: 5.7-inch color TFT touch screen

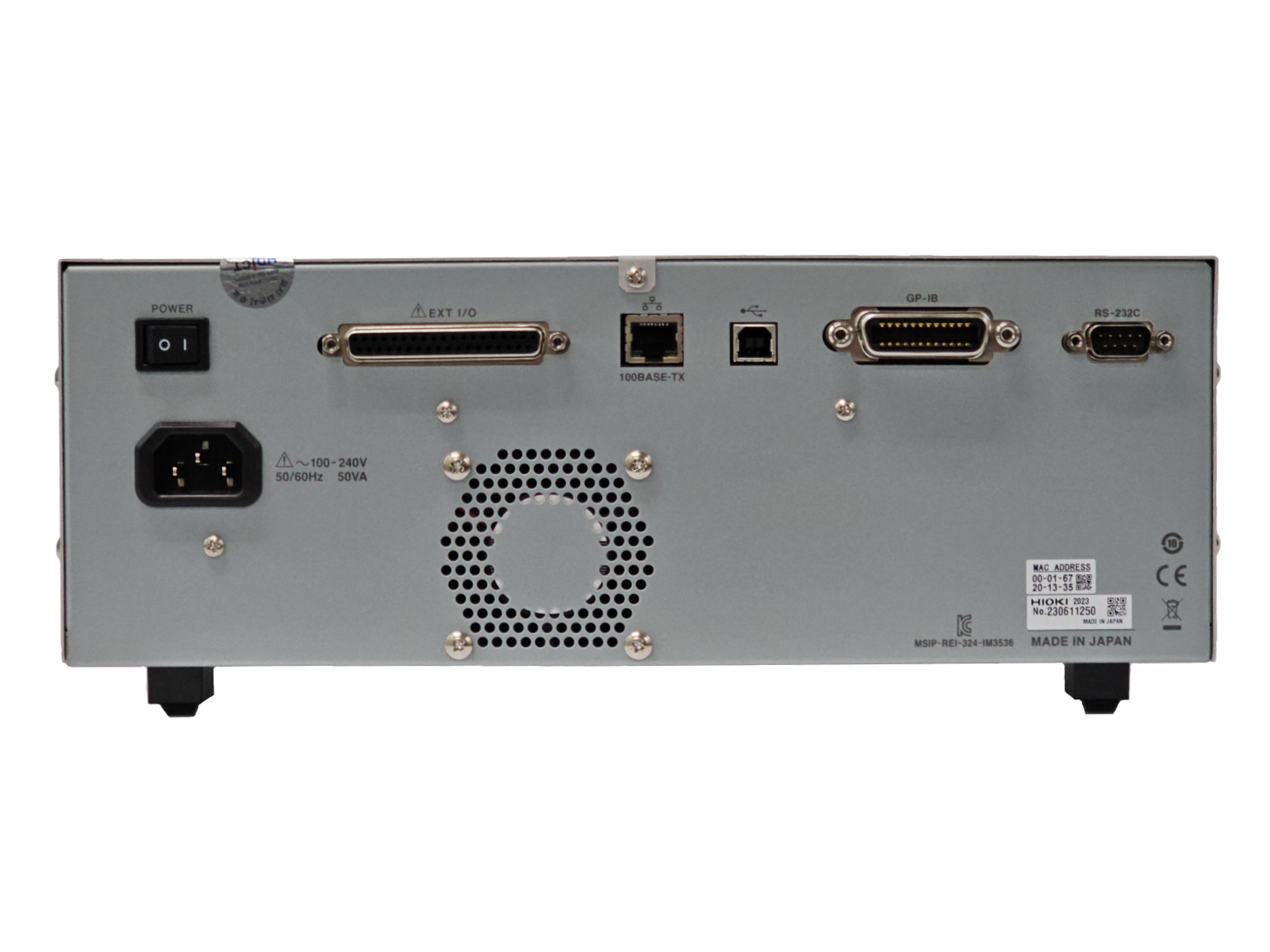

Interface: Standard equipped with LAN, USB, GP-IB, RS-232C, and Handler I/O

???????Dimensions: 330 mm (W) × 119 mm (H) × 230 mm (D) @ 4.2 kg
